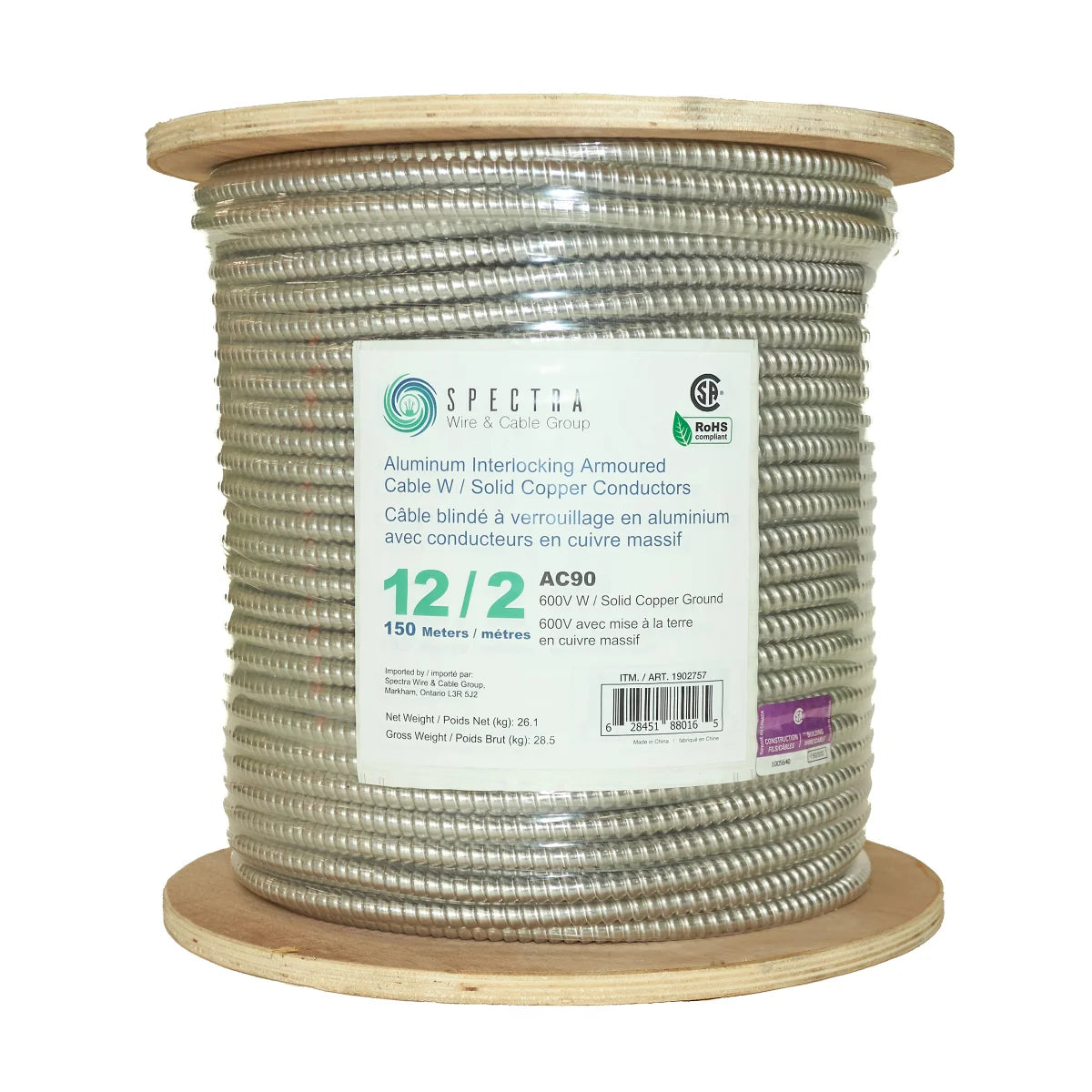

Spectra Aluminum Interlocking Armour Cable 12/2 AC90 with Solid Copper, 150 meters

Features:

Colour coding:

• 2-Conductor constructions: 1 black and 1 white

Application:

• For open and concealed wiring in dry locations only.
• For use in cable troughs and ventilated flexible cableways in dry locations only.
• Minimum recommended installation temperature minus 25°C (with suitable handling
• procedures).
• Maximum conductor temperature 90°C.
• Approved for use with ceiling fixtures.


Characteristics

Construction characteristics

• Conductor material Copper
• Insulation XLPE


Dimensional characteristics

• Approximate net weight 57.54 lb
• Cable Diameter 2.05 mm
• Conductor size (AWG) 12
• Number of conductors 2


Electrical characteristics

• Maximum operating voltage 600V

Usage characteristics

• Maximum operating temperature 90°C
• Minimum installation temperature -25°C

Specifications:

• Dimensions (L × W × H/D): 37.99 cm × 37.99 cm × 38.1 cm (14.96 in. × 14.96 in. × 15 in.)
  Weight: 22.6 kg (62.8 lb.)
